By Nobukimi Sasaki (2023-04-24) Continued from API Gateway + Lambda + DynamoDB (Configuration)

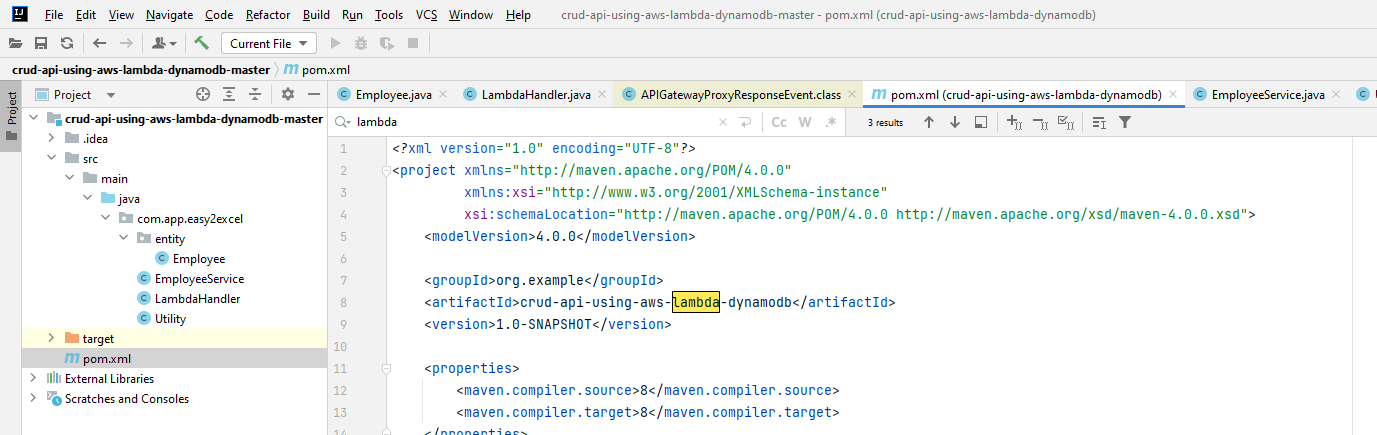

Dependency for AWS Lambda
<dependency> <groupId>com.amazonaws</groupId> <artifactId>aws-lambda-java-core</artifactId> <version>1.1.0</version> </dependency> <dependency> <groupId>com.amazonaws</groupId> <artifactId>aws-lambda-java-events</artifactId> <version>2.0.2</version> </dependency> <dependency> <groupId>com.amazonaws</groupId> <artifactId>aws-java-sdk-dynamodb</artifactId> <version>1.11.271</version> </dependency> <dependency> <groupId>com.fasterxml.jackson.core</groupId> <artifactId>jackson-databind</artifactId> <version>2.14.1</version> </dependency>
The main class receive the request:APIGatewayProxyRequestEvent::getHttpMethod.
import com.amazonaws.services.dynamodbv2.AmazonDynamoDB; import com.amazonaws.services.dynamodbv2.AmazonDynamoDBClientBuilder; import com.amazonaws.services.dynamodbv2.datamodeling.DynamoDBMapper; import com.amazonaws.services.dynamodbv2.datamodeling.DynamoDBScanExpression; import com.amazonaws.services.lambda.runtime.Context; import com.amazonaws.services.lambda.runtime.RequestHandler; import com.amazonaws.services.lambda.runtime.events.APIGatewayProxyRequestEvent; import com.amazonaws.services.lambda.runtime.events.APIGatewayProxyResponseEvent; public class LambdaHandler implements RequestHandler<APIGatewayProxyRequestEvent, APIGatewayProxyResponseEvent> { @Override public APIGatewayProxyResponseEvent handleRequest ( APIGatewayProxyRequestEvent apiGatewayRequest, Context context ) { EmployeeService employeeService = new EmployeeService(); switch (apiGatewayRequest.getHttpMethod()) { case "POST": return employeeService.saveEmployee( apiGatewayRequest, context ); case "GET": if (apiGatewayRequest.getPathParameters() != null) { return employeeService.getEmployeeById( apiGatewayRequest, context ); } return employeeService.getEmployees( apiGatewayRequest, context ); case "DELETE": if (apiGatewayRequest.getPathParameters() != null) { return employeeService.deleteEmployeeById( apiGatewayRequest, context ); } default: throw new Error( "Unsupported Methods:::" + apiGatewayRequest.getHttpMethod() ); } } }

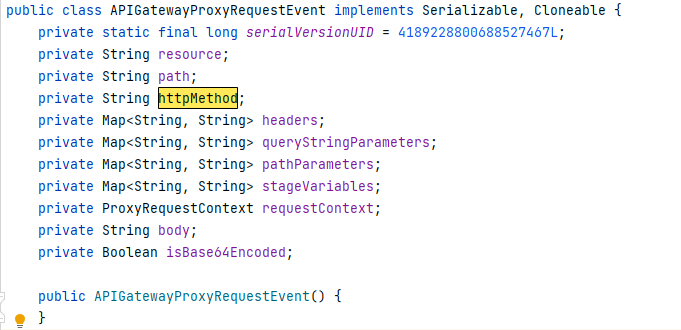

The 1st parameter, APIGatewayProxyRequestEvent contains:
This getHttpMethod returns String httpMethod that is “GET”, “POST”, “PUT”,,,,

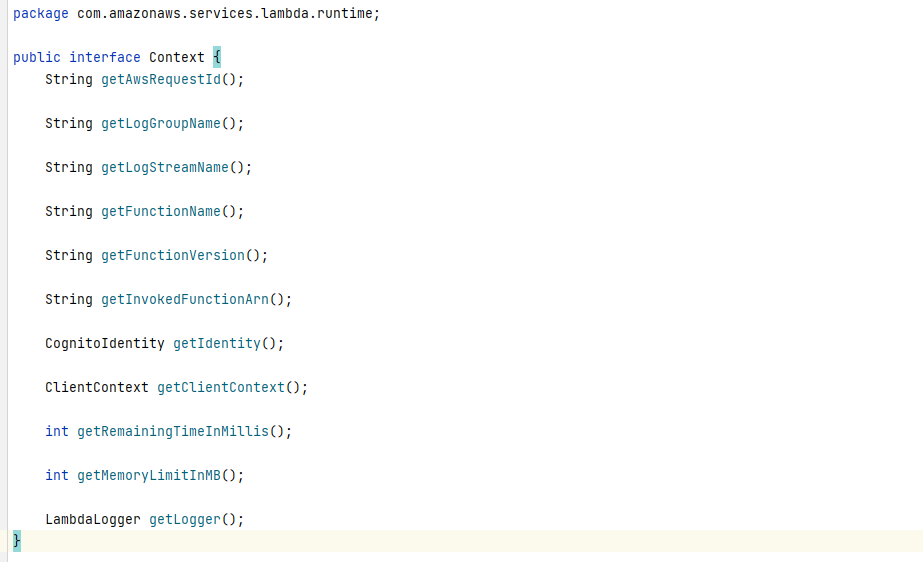

The 2nd parameter, Context contains:

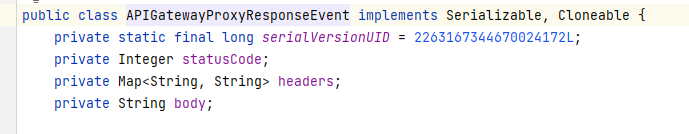

The response class “APIGatewayProxyResponseEvent” contains:
Saving data:
import com.amazonaws.services.dynamodbv2.AmazonDynamoDB; import com.amazonaws.services.dynamodbv2.AmazonDynamoDBClientBuilder; import com.amazonaws.services.dynamodbv2.datamodeling.DynamoDBMapper; import com.amazonaws.services.dynamodbv2.datamodeling.DynamoDBScanExpression; import com.amazonaws.services.lambda.runtime.Context; import com.amazonaws.services.lambda.runtime.events.APIGatewayProxyRequestEvent; import com.amazonaws.services.lambda.runtime.events.APIGatewayProxyResponseEvent; import com.app.easy2excel.entity.Employee; import java.util.List; import java.util.Map; public class EmployeeService { private DynamoDBMapper dynamoDBMapper; private static String jsonBody = null; public APIGatewayProxyResponseEvent saveEmployee ( APIGatewayProxyRequestEvent apiGatewayRequest, Context context ) { initDynamoDB(); Employee employee = Utility.convertStringToObj( apiGatewayRequest.getBody(), context ); dynamoDBMapper.save( employee ); jsonBody = Utility.convertObjToString( employee, context ); context.getLogger().log( "data saved successfully to dynamodb:::" + jsonBody ); return createAPIResponse( jsonBody, 201, Utility.createHeaders() ); } ....
Within the createAPIResponse, it returns the APIGatewayProxyResponseEvent:
private APIGatewayProxyResponseEvent createAPIResponse ( String body, int statusCode, Map<String, String> headers ) { APIGatewayProxyResponseEvent responseEvent = new APIGatewayProxyResponseEvent(); responseEvent.setBody( body ); responseEvent.setHeaders( headers ); responseEvent.setStatusCode( statusCode ); return responseEvent; }
The entity model:
import com.amazonaws.services.dynamodbv2.datamodeling.DynamoDBAttribute; import com.amazonaws.services.dynamodbv2.datamodeling.DynamoDBHashKey; import com.amazonaws.services.dynamodbv2.datamodeling.DynamoDBTable; @DynamoDBTable(tableName = "employee") public class Employee { @DynamoDBHashKey(attributeName = "empId") private String empId; @DynamoDBAttribute(attributeName = "name") private String name; @DynamoDBAttribute(attributeName = "email") private String email; ....
How to deploy the code:
Go to intellij terminal, as command line >mvn clean install

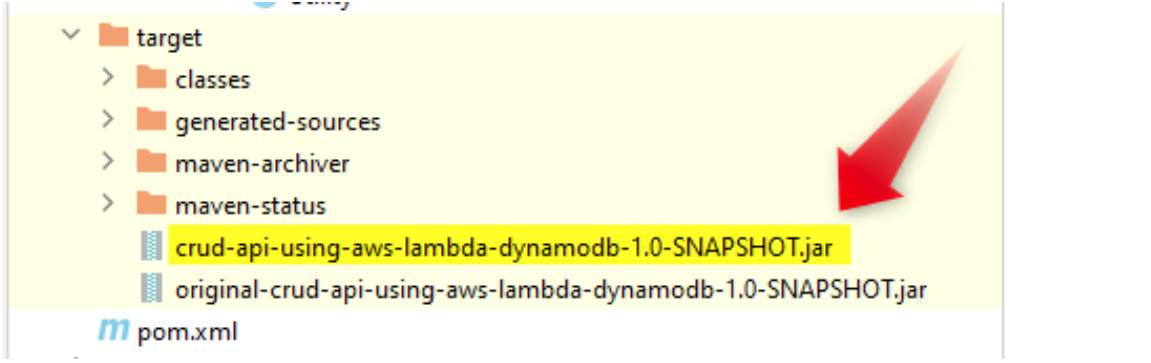

The jar file is created under target:
After specifying the built jar file, then upload.

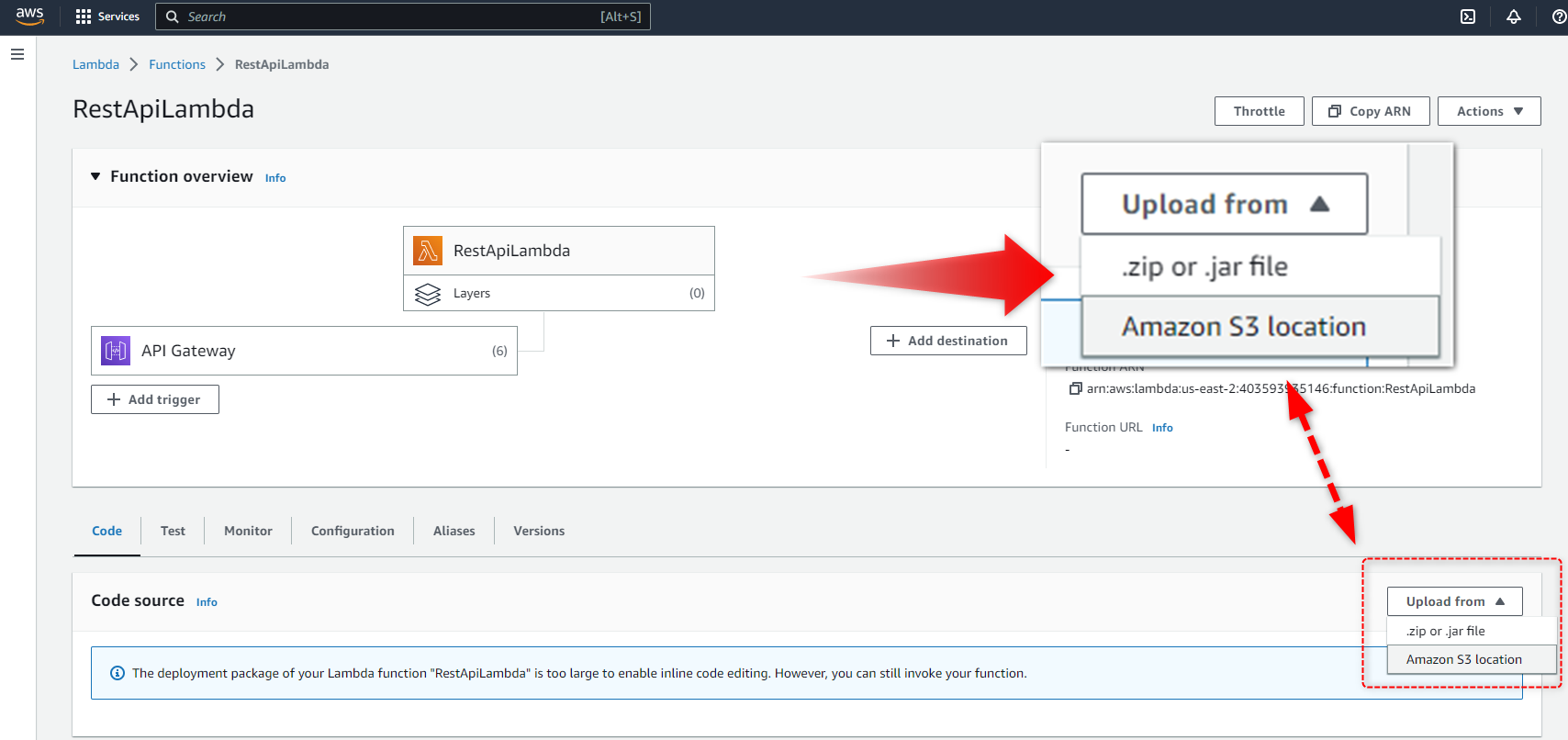

Lambda > Functions > RestApiLambda (your function name) … There is a “Upload From” button:

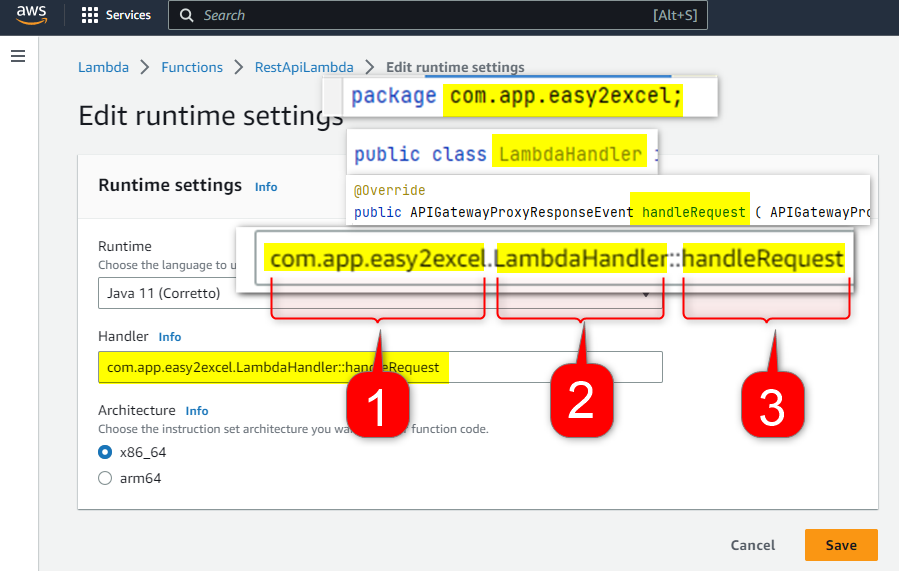

Scroll down and under Runtime settings > Edit
Edit the header info as:
1. Package path
2. Class name
3. Method name
Then Save! Now the API is ready to run

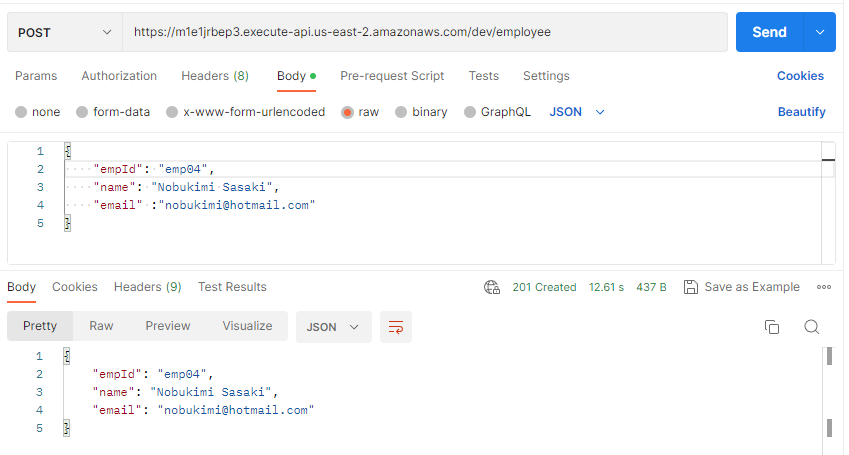

In Postman, the POST request went succesfully:

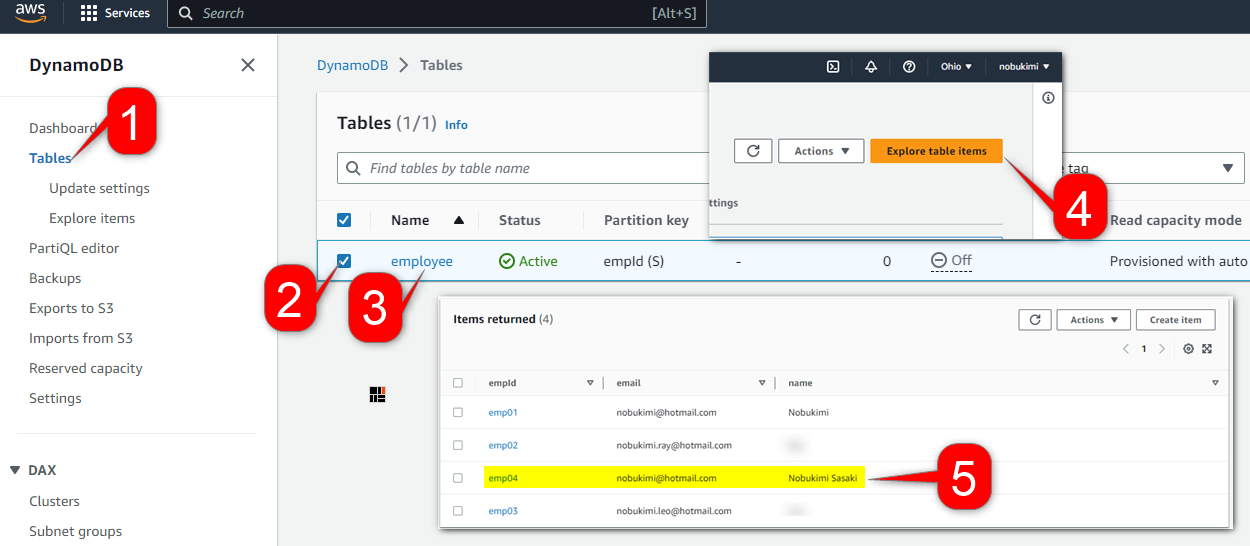

Go to dashboard DynamoDB > Tables
1. Tables
2. Check
3. Click the table name
4. Explore the items
5. You will see the data created
